T3 Confined Space Kit 6 | CST6KIT
EN 795 Type B, EN 1496, EN 361

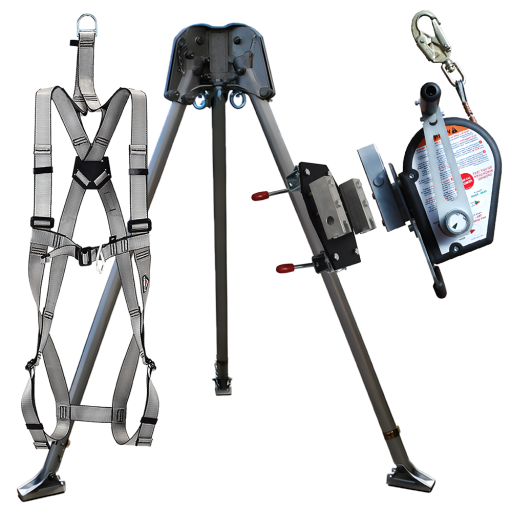

The CST6KIT is a complete confined space entry and rescue solution featuring the lightweight and portable T3 tripod, a TUFF 30m Personnel Winch for raising and lowering personnel, the T05TW2 tripod bracket, and the Cresto 1154R rescue harness. Ideal for confined space operations across industrial and maintenance sectors.
- Lightweight aluminium T3 tripod with multiple anchor points
- TUFF 30m personnel winch with galvanised steel cable
- T05TW2 bracket for secure tripod integration
- Includes Cresto 1154R harness
Product Details |
|
|---|---|
| Product Code | CST6KIT |
| Conformance | EN795 TYPE B, EN1496, E361, EN1497 |
| Life Span | 10 Years |
| Service | 12 months |
| Includes | T3 | 60005 |T05TW | 1154R |
Kit Contents
Two Person Tripod | T3
EN795 Type B
The T3 Two-Person Tripod offers adjustable leg span and height for optimal stability in confined space operations. Equipped with overhead pulleys accommodating up to 11mm ropes and fixed eyebolts for secure attachments. Ideal for use with winches and fall arrest devices in industrial scenarios.
- Supports up to two users with a maximum load of 250kg
- Telescopic legs adjustable for varied heights and terrains
- Three overhead pulleys compatible with up to 11mm ropes
- Six anchor points for versatile equipment attachment
CRESTO Core Active Rescue | 1154R
EN 361:2002, EN 1497:2007
The CRESTO Core Active Rescue 1154R is a full-body harness equipped with front and rear D-rings, as well as an additional dorsal rescue D-ring certified under EN 1497:2007. This makes it suitable for both fall arrest and rescue scenarios, particularly in confined spaces. Constructed with NordGuard™ polyester webbing, the harness offers durability and resistance to contaminants. Manual steel buckles on the chest and legs ensure a secure and comfortable fit.
- Triple Attachment Points: Front, rear, and rescue D-rings for comprehensive safety.
- Rescue D-Ring: Certified under EN 1497:2007 for rescue operations.
- Durable Webbing: NordGuard™ polyester for enhanced strength and longevity.
- Manual Buckles: Steel buckles on chest and leg straps for secure fitting.
- One-Size Design: Accommodates a wide range of body sizes.
TUFF Personnel Winch, 30m | 60005
EN 795, EN 1496
The TUFF Personnel Winch (60005) is engineered to provide dependable lifting and lowering capabilities for personnel in various working-at-height scenarios. With a 30-metre galvanised steel rope and an 11:1 mechanical advantage, this winch ensures controlled and effortless operation. Its robust design accommodates a maximum load of 280kg when used with a double-reeved system, making it suitable for both personnel and material handling within prescribed limits. The integrated rapid stop brake offers a maximum stopping distance of 610mm, enhancing safety during operations. Compatible with Abtech Safety’s T3 and RT3 tripods via the T05TW2 bracket, the 60005 winch is ideal for confined space entry, rescue missions, and industrial maintenance tasks.
- 30m galvanised steel rope for extended reach
- 11:1 mechanical advantage for efficient operation
- Maximum load capacity of 280kg with double-reeved system
- Rapid stop brake with a maximum stopping distance of 610mm
- Compatible with T3 and RT3 tripods using T05TW2 bracket
TUFF Winch to Tripod Bracket | T05TW2
EN 795 Type A
Robust mounting bracket designed to securely attach TUFF winches to Abtech Safety’s T3 and RT3 tripods, ensuring reliable performance in confined space operations.
The T05TW2 bracket facilitates the secure connection of TUFF winches — specifically the TUFF 30m/45m Personnel Riding Winch and the 30m Materials Winch — to Abtech Safety’s T3 and RT3 tripods. This bracket ensures a stable and reliable setup for confined space entry and rescue operations, allowing for efficient fall protection and personnel retrieval.
- Compatible with Abtech Safety’s T3 and RT3 tripods
- Designed for TUFF 30m/45m Personnel Riding Winch and 30m Materials Winch
- Constructed from durable materials for long-term use
- Ensures a secure and stable attachment in various working conditions
