T3 Confined Space Kit 2 | CST2KIT
EN 795 Type B, EN 360, EN 1496, EN 361

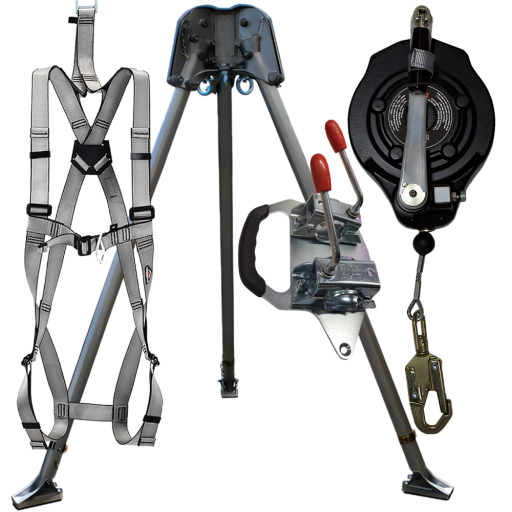

The CST2KIT is a complete confined space entry and rescue solution. It features the T3 two-person aluminium tripod, a 15m TORQ fall arrest and recovery winch (AB15RT), the required tripod mounting bracket, and the Cresto CORE Active Rescue Harness (1154R) with front, rear, and rescue attachment points. Suitable for industrial maintenance, utility access, and emergency response.
- T3 Tripod with adjustable legs and six anchor points
- 15m TORQ fall arrest winch (AB15RT) with integrated recovery function
- Includes tripod mounting bracket (T05T)
- Supplied with Cresto 1154R harness for rescue operations
Product Details |
|
|---|---|
| Product Code | CST2KIT |
| Conformance | EN 795 TYPE B | EN 360 | EN 1496 | E361 | EN 1497 |
| Life Span | 10 Years |
| Service | 12 months |
| Max Load | 250 kg |
| Includes | T3, AB15RT, T05T, ABRES |
Kit Contents
Two Person Tripod | T3
EN795 Type B
The T3 Two-Person Tripod offers adjustable leg span and height for optimal stability in confined space operations. Equipped with overhead pulleys accommodating up to 11mm ropes and fixed eyebolts for secure attachments. Ideal for use with winches and fall arrest devices in industrial scenarios.
- Supports up to two users with a maximum load of 250kg
- Telescopic legs adjustable for varied heights and terrains
- Three overhead pulleys compatible with up to 11mm ropes
- Six anchor points for versatile equipment attachment
CRESTO Core Active Rescue | 1154R
EN 361:2002, EN 1497:2007
The CRESTO Core Active Rescue 1154R is a full-body harness equipped with front and rear D-rings, as well as an additional dorsal rescue D-ring certified under EN 1497:2007. This makes it suitable for both fall arrest and rescue scenarios, particularly in confined spaces. Constructed with NordGuard™ polyester webbing, the harness offers durability and resistance to contaminants. Manual steel buckles on the chest and legs ensure a secure and comfortable fit.
- Triple Attachment Points: Front, rear, and rescue D-rings for comprehensive safety.
- Rescue D-Ring: Certified under EN 1497:2007 for rescue operations.
- Durable Webbing: NordGuard™ polyester for enhanced strength and longevity.
- Manual Buckles: Steel buckles on chest and leg straps for secure fitting.
- One-Size Design: Accommodates a wide range of body sizes.
AB15RT to Tripod Bracket | T05T
EN 795 Type A
Mounting bracket for attaching the 15m TORQ fall arrest winch (AB15RT) to T3 or RT3 tripods for safe confined space operations.
The T05T bracket provides a secure and reliable interface between the 15m TORQ fall arrest and recovery winch (AB15RT) and Abtech Safety tripods, such as the T3 and RT3. It ensures quick installation and a solid connection, enabling efficient fall protection and personnel retrieval in confined space environments.
- Designed specifically for the AB15RT fall arrest winch
- Compatible with Abtech T3 and RT3 tripods
- Durable, corrosion-resistant steel construction
- Tool-free attachment for fast setup and takedown
TORQ: Fall Arrest Winch, 15m | AB15RT
EN 360, EN 1496, ANSI Z359.1
The TORQ® 15m Fall Arrest Recovery Device (AB15RT) is engineered to provide dependable fall protection and swift rescue capabilities for personnel working at height. Equipped with a 15-metre galvanised steel cable and housed in a robust casing, this device ensures both durability and reliable performance. The integrated winch mechanism allows for the controlled raising or lowering of a user after a fall, enhancing rescue operations. The swivel anchor eye facilitates flexible movement, while the device’s design allows for easy mounting on Abtech Tripods and Davit arms. Suitable for a maximum user weight of 150kg, the AB15RT is compliant with BS EN 360:2002 and BS EN 1496:2006 Class A & B standards, making it ideal for construction, maintenance, and industrial applications.
- 15m retractable galvanised steel cable
- Integrated winch mechanism for rescue operations
- Swivel anchor eye for enhanced mobility
- Durable housing for longevity
- Compatible with Abtech Tripods and Davit arms
