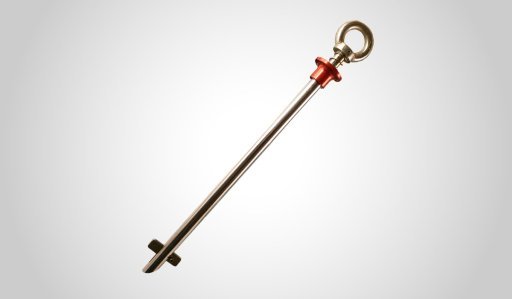

Concrete Anchor
With an MBS (Minimum Breaking Strength) of 28kN, this isn't your run-of-the-mill anchor. Its 330mm beam compatibility and 20mm drilled hole requirement mean it's specialised for heavy-duty operations.
- Compatibility: Suitable for use on both girders and concrete.
- Built for Beam: Required beam thickness of 330mm and 20mm drilled hole.
- Effortless Installation: Quick and easy two-finger pull-back mechanism.
Product Details |
|
|---|---|
| Product Code | GG201 |
| Conformance | EN795 TYPE B |
| Materials | Aluminium |
| Life Span | Indefinite |
| Service | Inspection |
| Weight | 1.16kg |
| Length | 508mm |
| Dimensions | L: 508mm | W: 19mm |
| Breaking Strength | 28kN |
Supporting Documents
Spec Sheet: Girder Anchor (GG201)
