TORQ: Fall Arrest Winch, 15m | AB15RT
EN 360, EN 1496, ANSI Z359.1

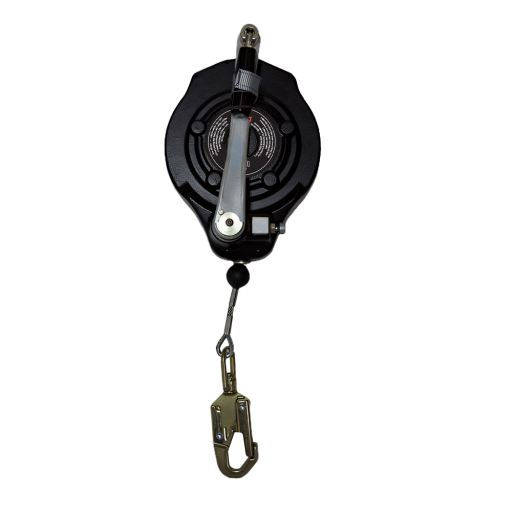

The TORQ® 15m Fall Arrest Recovery Device (AB15RT) is engineered to provide dependable fall protection and swift rescue capabilities for personnel working at height. Equipped with a 15-metre galvanised steel cable and housed in a robust casing, this device ensures both durability and reliable performance. The integrated winch mechanism allows for the controlled raising or lowering of a user after a fall, enhancing rescue operations. The swivel anchor eye facilitates flexible movement, while the device’s design allows for easy mounting on Abtech Tripods and Davit arms. Suitable for a maximum user weight of 150kg, the AB15RT is compliant with BS EN 360:2002 and BS EN 1496:2006 Class A & B standards, making it ideal for construction, maintenance, and industrial applications.
- 15m retractable galvanised steel cable
- Integrated winch mechanism for rescue operations
- Swivel anchor eye for enhanced mobility
- Durable housing for longevity
- Compatible with Abtech Tripods and Davit arms
Product Details |
|
|---|---|
| Product Code | AB15RT |
| Conformance | BS EN 360:2002 | BS EN 1496:2006 Class A & B | ANSI Z359.1 |
| Materials | Cable: 5mm Galvanised Steel |
| Life Span | 10 Years |
| Service | 12 months |
| Weight | 10.4kg |
| Max Load | 150kg |
Supporting Documents
Spec Sheet: TORQ 15m Fall Arrest Recovery Device (AB15RT)
0.32 MB
Download
Add Ons
Two Person Tripod | T3
EN795 Type B
The T3 Two-Person Tripod offers adjustable leg span and height for optimal stability in confined space operations. Equipped with overhead pulleys accommodating up to 11mm ropes and fixed eyebolts for secure attachments. Ideal for use with winches and fall arrest devices in industrial scenarios.
- Supports up to two users with a maximum load of 250kg
- Telescopic legs adjustable for varied heights and terrains
- Three overhead pulleys compatible with up to 11mm ropes
- Six anchor points for versatile equipment attachment

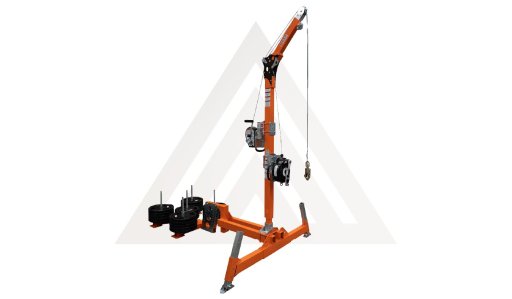

Counterweight Davit Kit | 30073KIT
EN 795:2012 Type B, EN 360, EN 1496
The 30073KIT is a comprehensive counterweight davit system that provides a safe and portable solution for confined space operations. Utilising standard barbell-type weight plates totalling 360 kg, it achieves a 4:1 safety factor per user. The system features independently adjustable legs to accommodate uneven terrain and includes both a 30 m man-riding winch and a 15 m fall arrest winch, ensuring versatility and compliance with safety standards.
- Counterweight Base: Accommodates 360 kg of weights for a 4:1 safety factor.
- Adjustable Legs: Independently adjustable to suit uneven ground conditions.
- Comprehensive Kit: Includes upper and lower davit arms, winches, and necessary brackets.
NB: Use code 30073KIT-30 to replace AB15RT with a 30m TORQ Fall Arrest Winch
AB15RT to Davit Bracket | 60176/2
EN 795 Type B
The 60176/2 bracket provides a safe and reliable means of attaching the TORQ 15m Fall Arrest Recovery Winch to Tuff Built davit systems. Engineered specifically for compatibility with the AB15RT fall arrest winch, this universal-style bracket ensures secure integration with Pro-3 Series davits, enabling effective vertical access and rescue operations. Its rugged construction offers durability for industrial use, while its tailored fit allows quick and consistent installation.
- Designed specifically for the 15m TORQ fall arrest winch (AB15RT)
- Compatible with Tuff Built davit systems (Pro-3 Series)
- Ensures secure mounting for rescue and fall protection scenarios
- Durable steel construction for industrial applications
