Vehicle Hitch Mount Davit Kit | 30093KIT
EN 795:2012 Type B, EN 360, EN 1496

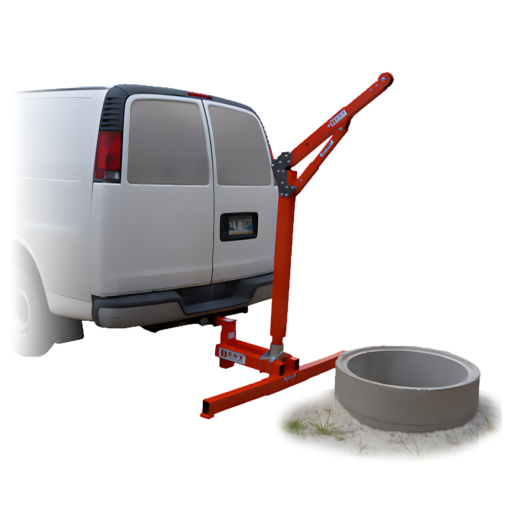

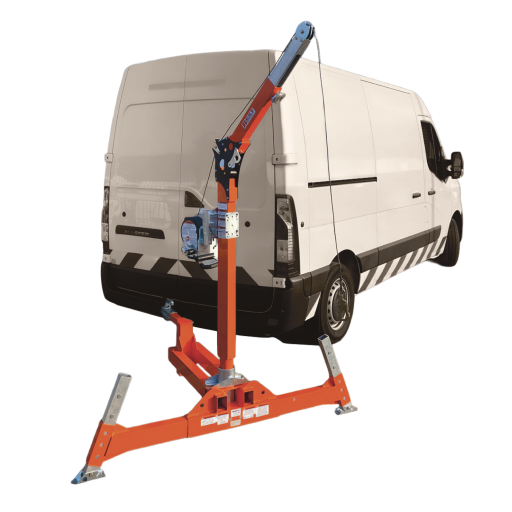

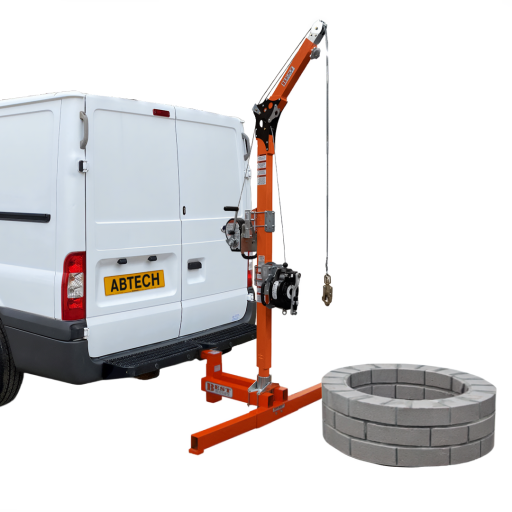

The 30093KIT is designed for scenarios where a vehicle can serve as a counterweight, offering a mobile and efficient solution for confined space entry and rescue. The system includes a hitch mount base, upper and lower davit arms, a 30m TUFF personnel winch, and a 15m TORQ fall arrest winch. Its modular design ensures quick setup and adaptability across various job sites.
- Vehicle Hitch Mount Base: Leverages vehicle weight for stability.
- Modular Design: Facilitates easy transportation and setup.
- Comprehensive Kit: Equipped with necessary winches and brackets.
Product Details |
|
|---|---|
| Product Code | 30093KIT |
| Conformance | EN795 TYPE B | EN1496 |
| Life Span | 10 years |
| Service | Various |
| Includes | 30093 | 30105 | 30109 | 60005 | 2 x 60209 | AB15RT | 60176/2 |
Kit Contents
Pro-3 Upper Davit Arm (Large) | 30105
EN 795:2012 Type B
The 30105 Pro-3 Upper Davit Arm is ideal for operations that demand greater vertical clearance. Offering a 71cm reach and height adjustment between 147cm and 170cm, it enables safe and efficient access over tanks, pits, or vaults. Designed for use with Pro-3 Series lower masts and compatible with front or rear-mounted fall protection equipment.
- 71cm outreach for rescue and entry positioning
- Extended height adjustment: 147–170cm
- Supports front/rear-mounted devices (winches, SRLs)
- Built to endure industrial use
Pro-3 Lower Davit Mast (Large) | 30109
EN 795:2012 Type B
The 30109 Pro-3 Lower Mast extends your rescue system’s vertical reach to 132cm. Built for compatibility with Tuff Built’s upper davit arms, it offers added clearance when working over deeper or obstructed entry points. Durable and easy to set up, it’s ideal for a wide range of industrial and utility applications.
- 132cm mast height for deeper access requirements
- Seamless integration with Pro-3 upper arms
- Built for harsh industrial environments
- Lightweight and corrosion-resistant
TUFF Personnel Winch, 30m | 60005
EN 795, EN 1496
The TUFF Personnel Winch (60005) is engineered to provide dependable lifting and lowering capabilities for personnel in various working-at-height scenarios. With a 30-metre galvanised steel rope and an 11:1 mechanical advantage, this winch ensures controlled and effortless operation. Its robust design accommodates a maximum load of 280kg when used with a double-reeved system, making it suitable for both personnel and material handling within prescribed limits. The integrated rapid stop brake offers a maximum stopping distance of 610mm, enhancing safety during operations. Compatible with Abtech Safety’s T3 and RT3 tripods via the T05TW2 bracket, the 60005 winch is ideal for confined space entry, rescue missions, and industrial maintenance tasks.
- 30m galvanised steel rope for extended reach
- 11:1 mechanical advantage for efficient operation
- Maximum load capacity of 280kg with double-reeved system
- Rapid stop brake with a maximum stopping distance of 610mm
- Compatible with T3 and RT3 tripods using T05TW2 bracket
TORQ: Fall Arrest Winch, 15m | AB15RT
EN 360, EN 1496, ANSI Z359.1
The TORQ® 15m Fall Arrest Recovery Device (AB15RT) is engineered to provide dependable fall protection and swift rescue capabilities for personnel working at height. Equipped with a 15-metre galvanised steel cable and housed in a robust casing, this device ensures both durability and reliable performance. The integrated winch mechanism allows for the controlled raising or lowering of a user after a fall, enhancing rescue operations. The swivel anchor eye facilitates flexible movement, while the device’s design allows for easy mounting on Abtech Tripods and Davit arms. Suitable for a maximum user weight of 150kg, the AB15RT is compliant with BS EN 360:2002 and BS EN 1496:2006 Class A & B standards, making it ideal for construction, maintenance, and industrial applications.
- 15m retractable galvanised steel cable
- Integrated winch mechanism for rescue operations
- Swivel anchor eye for enhanced mobility
- Durable housing for longevity
- Compatible with Abtech Tripods and Davit arms
AB15RT to Davit Bracket | 60176/2
EN 795 Type B
The 60176/2 bracket provides a safe and reliable means of attaching the TORQ 15m Fall Arrest Recovery Winch to Tuff Built davit systems. Engineered specifically for compatibility with the AB15RT fall arrest winch, this universal-style bracket ensures secure integration with Pro-3 Series davits, enabling effective vertical access and rescue operations. Its rugged construction offers durability for industrial use, while its tailored fit allows quick and consistent installation.
- Designed specifically for the 15m TORQ fall arrest winch (AB15RT)
- Compatible with Tuff Built davit systems (Pro-3 Series)
- Ensures secure mounting for rescue and fall protection scenarios
- Durable steel construction for industrial applications
Davit Bracket | 60209
EN 795 Type B
The 60209 Davit Bracket facilitates the secure attachment of winches and fall arrest devices equipped with fittings specific to Tuff Built Pro-3 Series davits (models 30104, 30105, 30108, 30109). Constructed from steel and aluminium, this bracket ensures reliable performance in demanding environments.
- Compatible with a range of winches and fall arrest devices
- Fits Tuff Built Pro-3 Series davits
- Durable steel and aluminium construction
Enquiries or Orders?
For more information on this product or to place an order and arrange delivery, our team are standing by to answer any questions:
