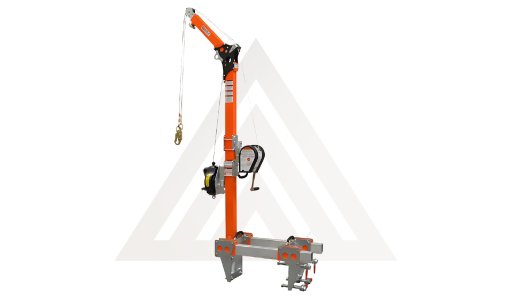

Adjustable Barrel Mount Davit Kit | 30029KIT
EN 795:2012 Type B, EN 1496, EN 360
The 30029KIT includes all core components for confined space access and fall protection using a Tuff Built Pro-3 Series davit. The key feature is the adjustable barrel mount, which clamps securely to trench walls or other vertical edges ranging from 57mm to 635mm in thickness. This complete system includes both lifting and fall arrest functionality via integrated winches and brackets.
- Clamp range from 57–635mm for broad compatibility
- Includes 30m personnel-riding winch and 15m fall arrest winch
- Modular Pro-3 upper and lower davit arms
- Winches mount using compatible brackets for vertical entry/rescue
NB: Use code 30029KIT-30 to replace AB15RT with a 30m TORQ Fall Arrest Winch
Barrel Mount Davit Kit (57mm) | 30036KIT
EN 795:2012 Type B, EN 1496, EN 360
The 30036KIT offers a fixed-width barrel mount solution, ideal for trench boxes or walled structures with 57mm (2.25”) edges. Designed for personnel retrieval and fall protection, this system integrates Tuff Built’s rugged Pro-3 Series mast and winch solutions into a secure, portable vertical access setup.
- Fixed 57mm clamp barrel mount
- Designed for vertical confined space rescue
- Includes man-riding and fall arrest winches
- Pro-3 Series modular mast and mounting system
NB: Use code 30036KIT-30 to replace AB15RT with an 30m TORQ Fall Arrest Winch

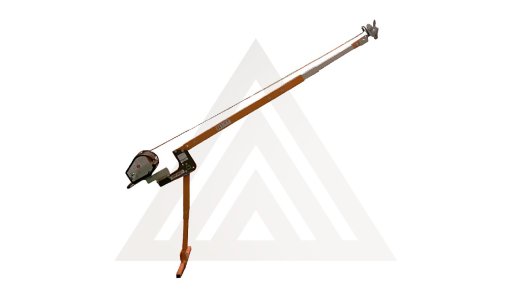

Pole Hoist Davit Kit | 30040KIT
EN 795:2012 Type B, EN 1496
The 30040KIT features Tuff Built’s telescoping pole hoist, ideal for horizontal confined space entry where vertical extraction is required. With its adjustable boom, the system is compact, portable, and engineered for personnel lifting and rescue when used with approved winch equipment.
- Adjustable reach: 1.52m to 3.05m
- Horizontal-to-vertical entry rescue capability
- Compact and portable configuration
- Suitable for edge or tank collar anchoring

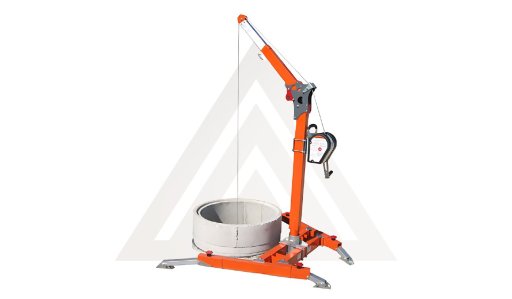

4-Piece Base Davit Kit | 30070KIT
EN 795:2012 Type B, EN 1496
The 30070KIT is a complete Pro-3 Series system built around a portable base, enabling confined space access without requiring permanent anchorage. With upper and lower mast sections and a winch system for personnel lifting, it is suitable for rotating between multiple job sites or short-term rescue installations.
- Includes portable base for flexible deployment
- Modular Pro-3 mast system
- Suitable for personnel lifting, access, and retrieval
- Easy to assemble and transport between sites

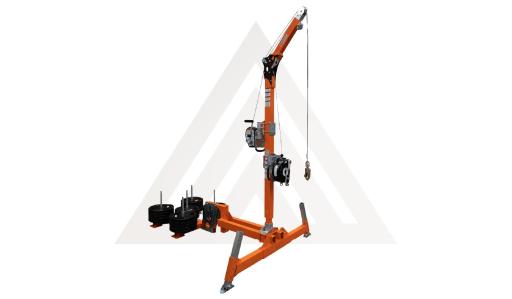

Counterweight Davit Kit | 30073KIT
EN 795:2012 Type B, EN 360, EN 1496
The 30073KIT is a comprehensive counterweight davit system that provides a safe and portable solution for confined space operations. Utilising standard barbell-type weight plates totalling 360 kg, it achieves a 4:1 safety factor per user. The system features independently adjustable legs to accommodate uneven terrain and includes both a 30 m man-riding winch and a 15 m fall arrest winch, ensuring versatility and compliance with safety standards.
- Counterweight Base: Accommodates 360 kg of weights for a 4:1 safety factor.
- Adjustable Legs: Independently adjustable to suit uneven ground conditions.
- Comprehensive Kit: Includes upper and lower davit arms, winches, and necessary brackets.
NB: Use code 30073KIT-30 to replace AB15RT with a 30m TORQ Fall Arrest Winch

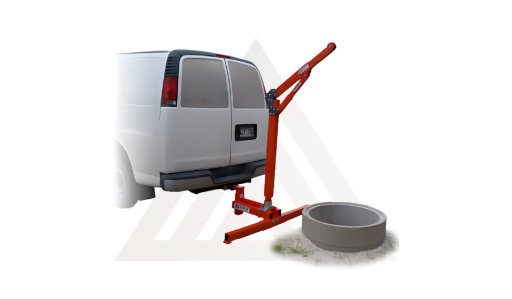

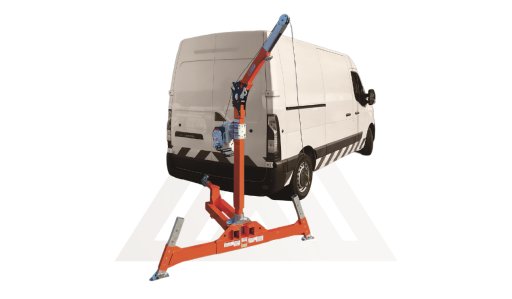

Vehicle Hitch Mount Davit Kit | 30093KIT
EN 795:2012 Type B, EN 360, EN 1496
The 30093KIT is designed for scenarios where a vehicle can serve as a counterweight, offering a mobile and efficient solution for confined space entry and rescue. The system includes a hitch mount base, upper and lower davit arms, a 30m TUFF personnel winch, and a 15m TORQ fall arrest winch. Its modular design ensures quick setup and adaptability across various job sites.
- Vehicle Hitch Mount Base: Leverages vehicle weight for stability.
- Modular Design: Facilitates easy transportation and setup.
- Comprehensive Kit: Equipped with necessary winches and brackets.

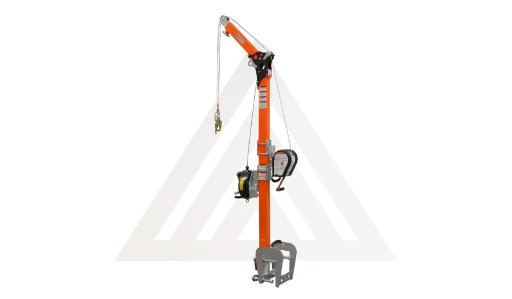

Davit Barrel Mount Kit (127mm) | 30161KIT
EN 795:2012 Type B, EN 360, EN 1496
The 30161KIT is engineered for secure attachment to trench boxes and shoring structures up to 127mm wide. This kit includes upper and lower davit arms, a 30m personnel winch, a 15m TORQ fall arrest winch, and the necessary mounting brackets. Its robust design ensures safety and compliance in demanding confined space environments.
- 127 mm Barrel Mount: Designed for wider trench boxes and shoring.
- Complete System: Comes with essential winches and mounting hardware.
- Durable Construction: Built to withstand harsh working conditions.
NB: Use code 30161KIT-30 to replace AB15RT with a 30m TORQ Fall Arrest Winch

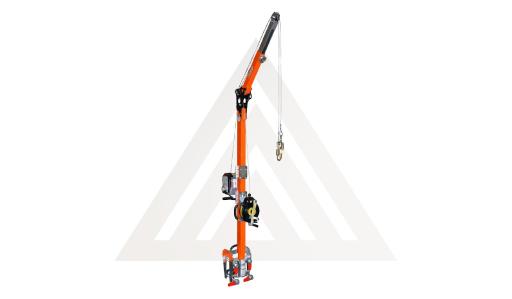

Davit Barrel Mount Kit (181mm) | 30166KIT
EN 795:2012 Type B, EN 360, EN 1496
The 30166KIT is designed for applications requiring attachment to trench boxes or shoring structures up to 181mm wide. This comprehensive kit includes upper and lower davit arms, a 30m TUFF personnel winch, a 15m TORQ fall arrest winch, and all necessary brackets. Its design ensures reliable performance and adherence to safety standards in confined space operations.
- 181mm Barrel Mount: Accommodates wider trench and shoring structures.
- All-Inclusive Kit: Equipped with essential components for immediate deployment.
- Robust Design: Ensures longevity and reliability in the field.
NB: Use code 30166KIT-30 to replace AB15RT with a 30m TORQ Fall Arrest Winch
