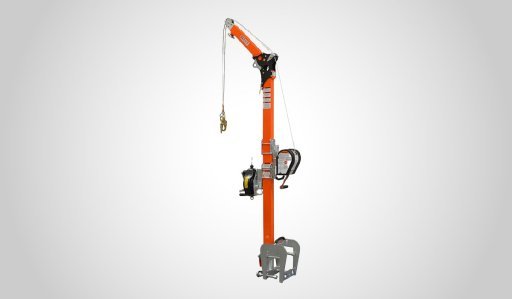

Barrel Mount Kit (127mm)
Go bigger and bolder, but remain safer. The 5" Barrel Mount Kit delivers on all fronts.
- All-Inclusive Kit: Everything you need—30105, 30109, 60005, AB15RT, and brackets—bundled in one.
- Certified: Compliant with EN795 Class B, EN360, and EN1496.
- Wider Scope: Designed for larger trench boxes and shoring, fitting up to a 5" width.
NB: To request this kit with an 30m Fall Arrest Winch use code to 30161KIT-30
Product Details |
|
|---|---|
| Product Code | 30161KIT |
| Conformance | EN795, TYPE B | EN360, EN1496 |
| Life Span | 10 years |
| Service | Various |
| Includes | 30161 | 30105 | 30109 | 60005 | AB15RT | 60176/2 | 2x60209 |
Supporting Documents
Spec Sheet: Barrel Mount (30161)
0.28 MB
Download
Kit Contents

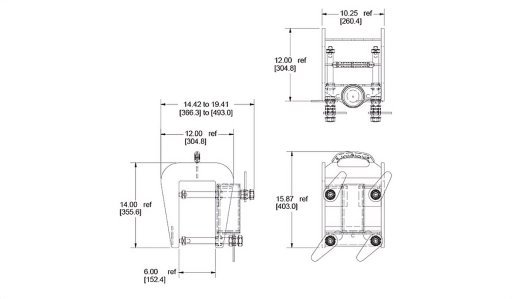

Barrel Mount (127mm)
When the scope of your project grows, so should your safety measures. With the Barrel Mount Base 30161, you're not just scaling up—you're leveling up. This mount was built for shoring and trench boxes up to 5" in width.
- Expansive Design: Designed to accommodate shoring and trench boxes with up to 5" in width.
- Certified Secure: Fully compliant with EN795 Class B standards for your peace of mind.
- Built to Last: Crafted from mild steel and finished with CS-500 for long-lasting performance.
Large Upper Davit
The Large Upper Davit offers the reach and reliability you need to get the job done.
- Adaptable Angle: Comes with an adjustable offset for versatile positioning.
- Certified Trust: Meets EN795 CLASS B safety standards
- Hearty Build: Sturdy 12kg construction to handle your heaviest operations.
- Extended Reach: An impressive 28" reach.
Large Lower Davit
Complete your Upper Mast Davit and Base and elevate your safety measures, literally and figuratively.
- System Synergy: Specifically designed for seamless integration with Upper Mast Davit and Base.
- Certified Confidence: Meets EN795 CLASS B standards for assured safety and quality.
- Built to Last: Robust construction with an 8kg weight capacity.
- Sky's the Limit: Towering height of 52" to meet your lifting needs.
30M Personnel Winch
- Multi-Tasker: Beyond confined spaces, this all-rounder is also perfect for work positioning, rescue, and even material handling within the prescribed load limits.
- Precision Meets Power: With an 11:1 mechanical advantage and an average cranking force of just 30 lbs, the 30m Personnel Winch offers control and ease of use.
- High Weight Capacity: Up to 280kg with a double-reeved system.
- Rapid Stop Brake: Maximum stopping distance of 24".
15M Fall Arrest Winch
- Double Duty: Safety? Check. Recovery? Check. In addition to arresting a fall, the built-in winch allows a fellow worker up-top to raise or lower you to a safer place.
- Adaptable: Whether mounted to an T3 Tripod or Davit Arm, this device adapts, making confined space projects safer and smoother.
- Versatile: 15m x 5mm Galvanized Steel
- Flexible and Secure: Swivel anchor eye on top for flexibility.
- User-Friendly: Max Recommended User Weight: 150KG
AB15RT to Davit
- The Perfect Match: This trusty brackets helps securely fix our Fall Arrest Device/Winch to any Abtech Davit System.
- Compatibility: Must be used in conjunction with 60209 Davit Bracket
Davit Bracket
- Secure: Attaching a Man Riding Winch to a davit system made simple.
- Universal Compatibility: Designed for seamless integration with davit systems.
- Heavy-Duty: Engineered for durability and reliability.
